Don Slomke builds a Dillon Mini Vee
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Don is building his Mini Vee in West Virginia. |
| |||||||
|
He has opted for the "zero setback" version. The zero setback Mini that I built earlier this year has worked out very nicely. |
| |||||||
|

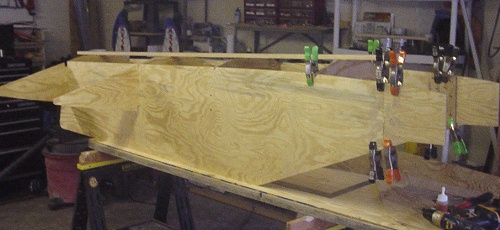

Just a week after buying his plans, he has the preliminaries already in place. |
| |||||||
|
Don says he is "18 hours into it." |
| |||||||
|

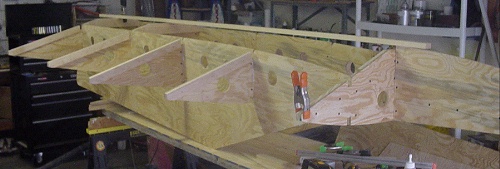

More progress, with the battens in along the bottom edges of the coamings, and some extra bracing added between bulkheads three, four and the transom. |
| |||||||
|

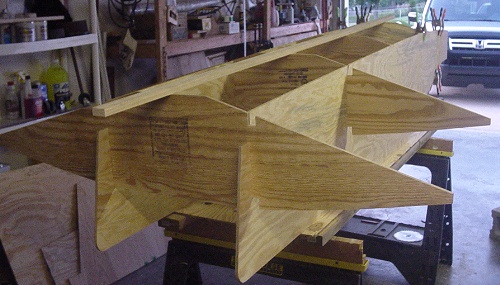

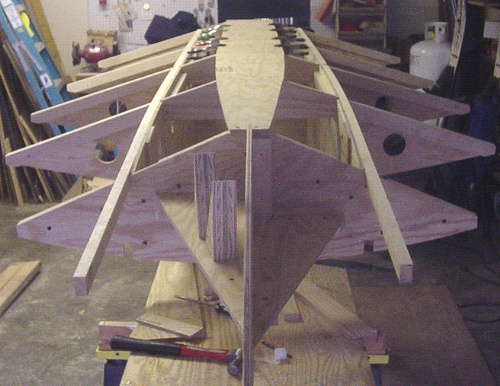

And then all that is capped off with the keel. |
| |||||||
|

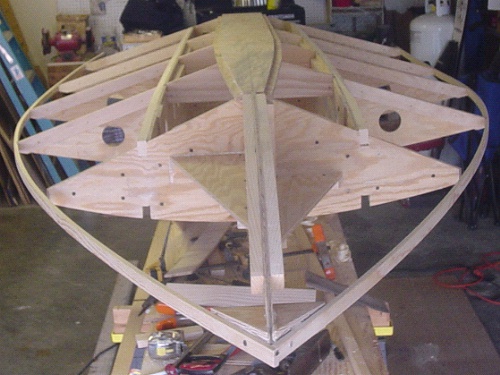

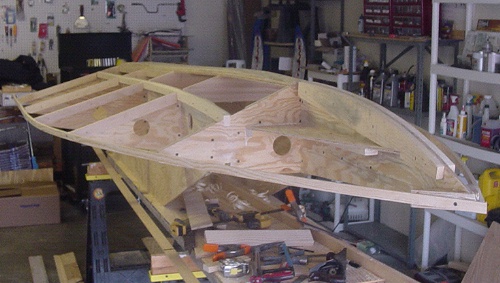

Battens trimmed, glue blocks added to the stem, and the sheer clamps bent into place. |
| |||||||
|

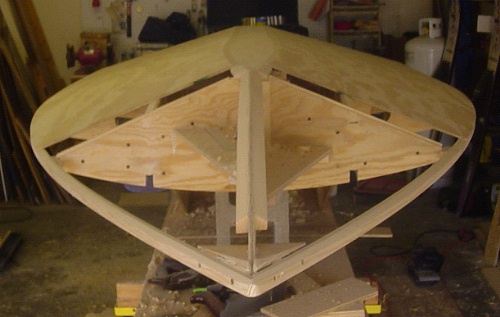

The full shape of the Mini Vee is revealed. Looking good! |
| |||||||
|

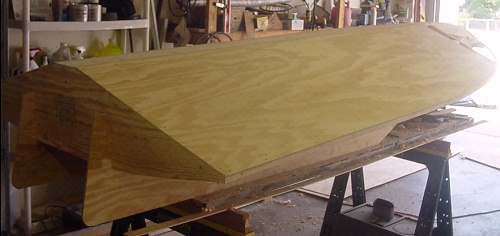

Time to install the bottom. |
| |||||||
|
Another view. |
| |||||||
|

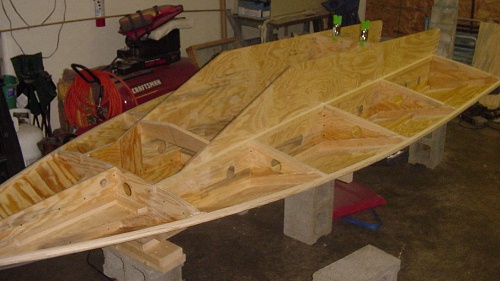

Turning over the boat is always a significant milestone, a chance to really see how your project is progressing, and the feeling that the job is (maybe) half finished. |
| |||||||
|
Blocks of flotation tucked into place. Time for the deck. |
| |||||||
|
Another view. |
| |||||||
|

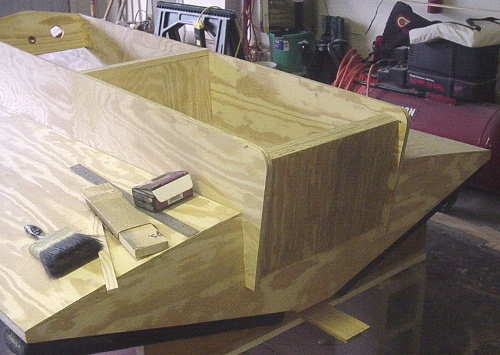

With the foredeck installed, time to work on the cowling. Don has chosen the angled version. |
| |||||||
|

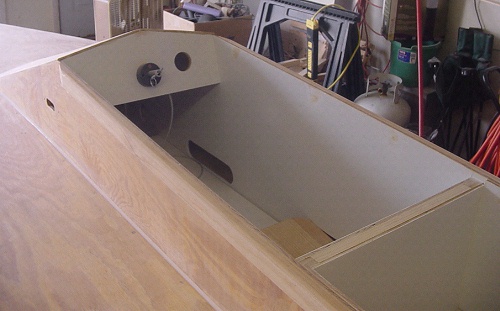

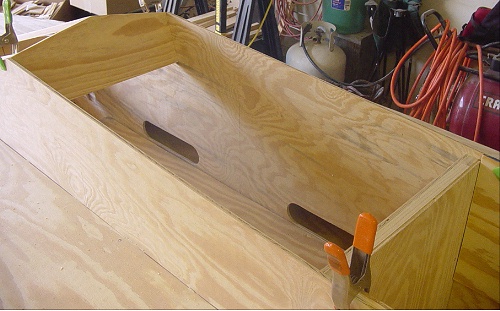

A peak down into the cockpit. |
| |||||||
|
The motorboard in place, waiting for cleats to support it. |
| |||||||
|
"Wood work is 100% complete!" Don says. "Whew!" And in record time, maybe. Don bought his plans barely a month ago. |
| |||||||
|
The steering is roughed in and the interior finishing has begun. Don also reports that the first coats of epoxy are on and have been sanded. |
| |||||||
|

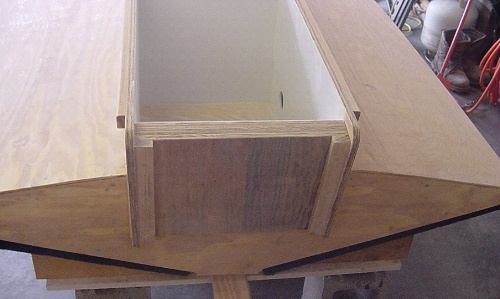

A view from behind. I would prefer to see the cleats backing up the motorboard turned 90 degrees so that their wide sides are attached to the coaming, providing maximum support. |
| |||||||
|

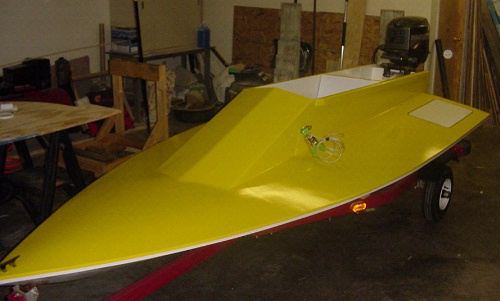

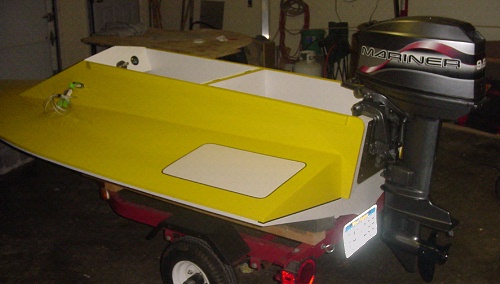

A nice paint job and it's a beautiful boat! Nice work, Don. And nothing exotic here. Don used Rustoleum polyurethane enamel, which you will find at most hardware stores. At about $9/quart you can't go wrong. |
| |||||||
|
Just a rub rail to be added, then the rigging. |
| |||||||
|

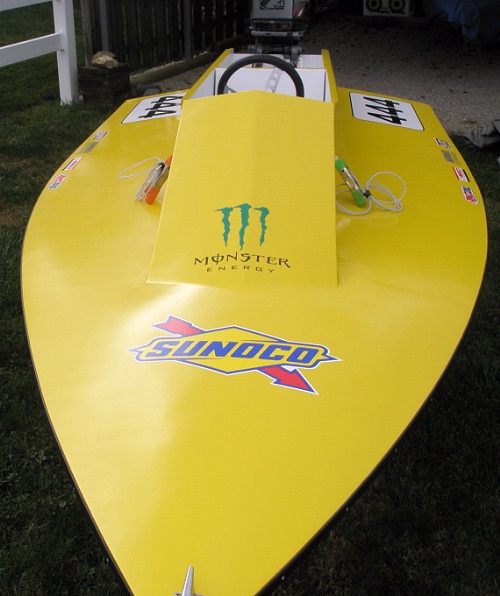

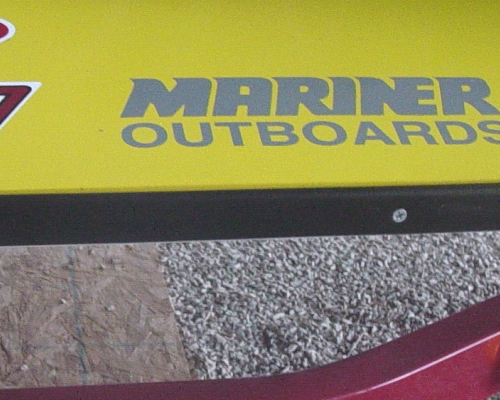

Nothing like some major sponsorship to help pay the bills -- or wish they were.... |
| |||||||
|

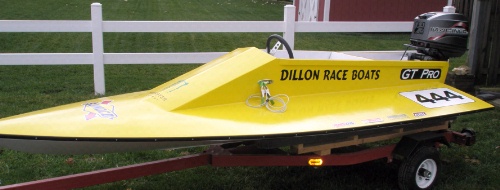

"All it needs now is a prop, steering bar and controls," Don reports. "I can't wait until it warms up so I can give it a test drive." |
| |||||||
|
A shout-out to Yours Truly and our favorite racing class. Thanks, Don. |
| |||||||
|
This is the view you want your competitors to get used to. |
| |||||||
|

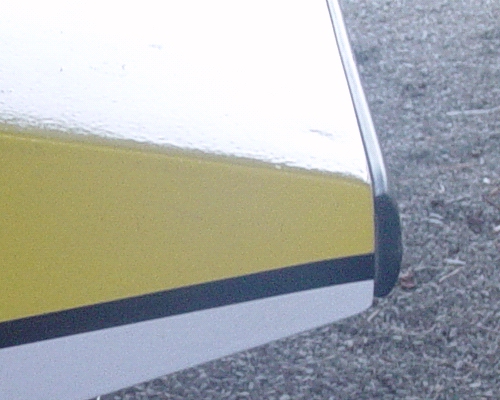

Don shares this building tip: "SportWing... sells the 'rubrail' I used on my Mini Vee. A single 26' roll works out about perfect for the Mini Vee and only costs $32." You can find SportWing HERE |
| |||||||
|
"After applying the molding with the double sided tape, I installed # 4 x 3/4" SS flathead screws about every 8 inches along the gunnel. I pre-drilled holes in the molding and added a small countersink before installing the screws. It gives the boat a nice finished look and protects the hull sides nicely." |
| |||||||
|
Here is a YouTube playlist of Don's Mini Vee out on the lake. He reports speeds up to 42 mph, and is still looking for just the right propeller. | ||||||||
|
