The Dillon EZ Tunnel

Boat Plans: Racing/Recreational Tunnel Boat Designed for Simplified Construction

Length: 10' 10" (3.30m)
Beam: 68" (1.73m)
Hull Weight: ~230 lbs. (105kg)
Max. Power: 35 hp / 120 lbs.

FREE SHIPPING
(via download option)

I designed and built the original Dillon EZ Tunnel in the summer of 2011 with the specific intent of introducing a simpler tunnelboat construction method aimed at the first-time builder, or anyone with a limited set of tools.

In the early autumn of 2011, after only a few test runs, I brought the new boat to the races in Forest Lake, MN. There were still some issues to iron out, but the boat proved very fast and finished third in its first GT Pro race, and second place in its second race.

Back at the shop, I made a small change in the bottom that vastly improved the EZ Tunnel's turning ability.

I only was able to drive the boat in three races in 2012. It showed excellent speed on the straightaways, but was still a bit limited in the turns. However, the EZ was designed more for its ease of contruction and speed down the lake than for its racing ability.

To design the EZ Tunnel, I eliminated all unnecessary angles and curves, and replaced the usual long stringers with plywood bulkheads and girders. These parts are laid out right on the plywood sheets and cut out simply with a jigsaw.

Study the construction notes to see how the process works.

The Dillon EZ Tunnel boat was designed for the 31.8 cubic inch Johnson or Evinrude outboard motor. This two-stroke, two-cylinder motor was manufactured in 20, 25, 30 and 35 horsepower versions from 1976 through 2005. It is the 30 and 35 horsepower models (they are, in fact, identical) that we use in GT Pro. More about GT Pro HERE.

Of course, the EZ Tunnel would also make a fun and exciting boat for the non-racing high performance enthusiast. A wide variety of motors would be suitable, including the 25/30 hp Tohatsu which is used very successfully for racing in Europe and Australia. A smaller motor (15-20hp) with a light-weight driver should also work very well. Whatever your non-racing purposes, I must state strongly that this boat is entirely unsuited for any engine that exceeds a weight of 120 lbs.

As already stated, the EZ Tunnel is simple to build (as boats go), by design. A few basic tools like a jigsaw, electric drill, and a belt sander will perform most of the tasks at hand. Add to that a bit of patience and attention to detail, and you will have a boat that will not only go fast, but that you will be proud to own.

I built mine entirely from 5mm, exterior-grade plywood and pine lumber for a finished, un-rigged cost of about $300.



Purchase EZ Tunnel Plans
$55.00 Instant Download

Add to Cart View Cart
Add: Seat Plans : Jackplate Plans
more payment options

Announcing the Dillon EZ Tunnel
See The Online Construction Notes

Continue Shopping
Build your own racing boat


The EZ Tunnel takes an early lead, but I backed off in
the rough conditions and quickly lost out to a Racemaster (#419)
and a Pro Tunnel (#32) and eventually a Mini Tunnel (#311)

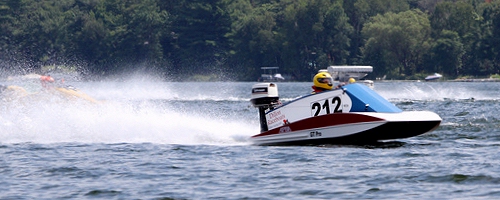

Racing the EZ Tunnel in Crosby, MN.
Note how well she flies on her first pass by the camera.
About the Plans: I am not a naval architect, or an engineer, or even a draftsman. I am a forester by education, a furniture-maker by profession, and a boat-builder, sailor and racer by inclination. I have built a number of boats over the last 35 years or so: from the 8-foot hydroplane I built when I was fourteen, to a 21-foot sailboat built in the 1990s, and a bunch of tunnel and v-bottom raceboats since 2005.

Loft Table I design my boats on a "computer aided design" (CAD) program on my computer. Once the basic lines have been developed, I draw the plans full-size on a loft table to ensure all curves are fair. Corrections made in the loft plan are then carried back to the CAD drawings and the plans are finalized.

The resulting plans are NOT a set of blueprints or full-size drawings. The plans are (in part) a collection of digital scale drawings of all the major parts which the builder can print out on regular printer paper. (Pre-printed drawings shipped via postal mail are also available.) The drawings include all necessary measurements so that the builder can expand them full-size -- onto paper templates if desired, or better yet right onto the plywood.

The plans package, available via direct download or by postal mail, includes eighteen measured drawings; a scantling list; and some notes on wood, hardware and other materials needed to complete your boat and set it up for recreational boating or sanctioned racing. Also, I provide extensive online construction notes, including dozens of photos, which will guide you through the entire building process. And, I will be just an email away if you have questions.

The plans package is $55 US via direct download; or $65 printed on 8.5" x 14" sheets and sent via postal mail. You can pay online through Paypal (you do not need a Paypal account), or you may send a check or money order.

Purchase EZ Tunnel Plans
$55.00 Instant Download

Add to Cart View Cart
Add: Seat Plans : Jackplate Plans
more payment options

Announcing the Dillon EZ Tunnel
See The Online Construction Notes

Continue Shopping
Build your own racing boat





Need HELP!? Frequently Asked Questions
Ready to race
A few basic parts built around the tunnel plank
just off the beach in Crosby, MN
The tunnel plank
